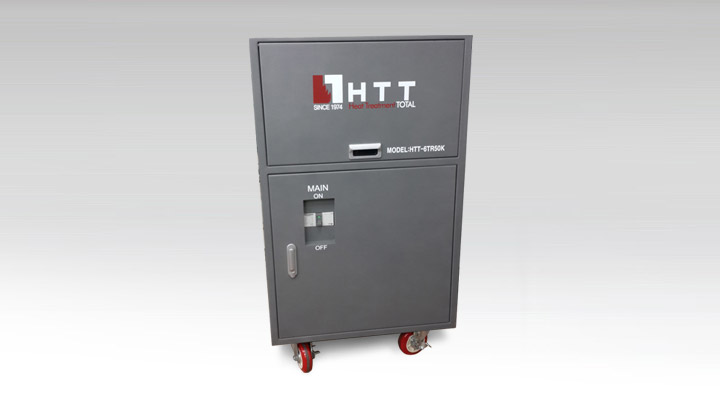

6CH Power Regulator
HTT-3PT65K
기기 사양
| Item | Specification | |
|---|---|---|
| Power Source | AC 380/440/460V 50/60Hz 3P | |
| Output Power | 30/45/60V (MAX 100A) | |
| Internal Temp Controller | Sensing Range | 0∼1200℃ Type K |
| Control Type | ON/OFF | |
| Program Controller | Order | |
| Control Type | Magnet Contector ON/OFF | |
| Cooling System | Air Fan Cooling | |
| Insulation Resistance | 200MΩ Minimum (600V DC Megger Test) Ground Electric Leak (100mA) |
|
| Operating Humidity | 35∼85% RH (No Condensation) | |
| Operating Temperature | -20 ~ 45℃ | |
| Dimension | 620mm(W) × 500mm(D) × 350mm(H) | |
| Weight | 100Kg | |
기기 각 부의 명칭

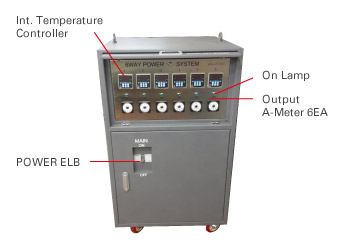

- 앞면

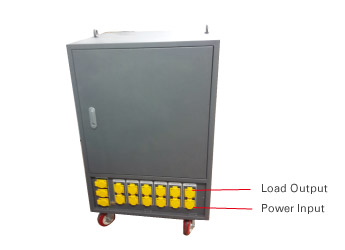

- 뒷면

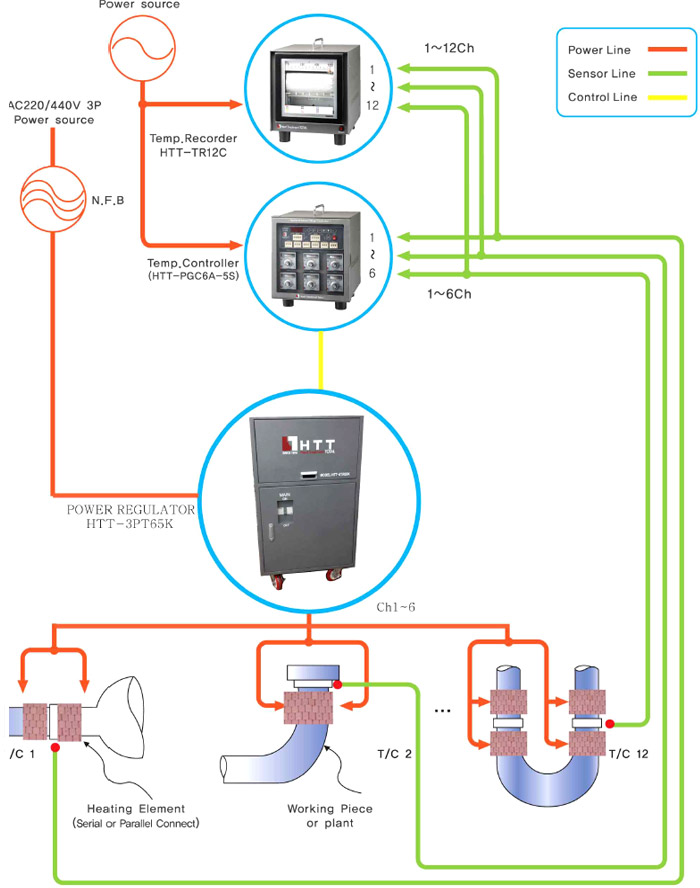

설치 구성도
